SG-555H
FULLY AUTOMATIC RIVET ATTACHING MACHINE
-Open for any inquiry of rivets of special shapes and sizes

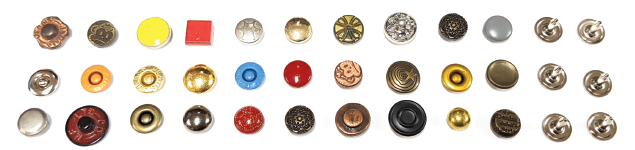

Various sizes of rivets available with one machine
1. Suitable to attach various sizes and designs of rivets with ONE MACHINE(PATENTED),
applicable rivet size: 7 - 12mm (diameter)
(6mm rivets are applicable exclusively by the machine and 7mm, 11mm, 12mm rivets are up to designs)
2. User-friendly machine, easy-focusing with laser marking,
easy to operate and less training time required
3. Around 30,000 rivets can be attached in a standard work time of 8 hours
4. Dimensions: approx. 730x710x1410mm
5. Gross weight: approx. 175Kgs
6. Motor spec.: 220V (50/60Hz), 1/3Hp, 0.25KW
CATALOGUE P. 2
